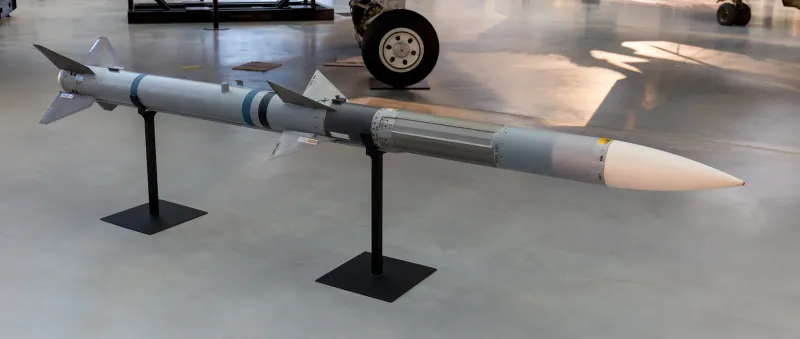

AIM-120D AMRAAM
The latest production variant of the AIM-120 Advanced Medium-Range Air-to-Air Missile, adding a two-way datalink, GPS-aided navigation and extended range over earlier AMRAAMs. It is the standard beyond-visual-range air-to-air weapon of the US and allied air forces.
In service since 2015 · 40 operator countries
Compiled from public sources ·primary reference ↗ ·last verified 2026-07-01
160
km range
4
Mach
18
kg warhead
💲 ≈ $1,500,000 — Approximate US Air Force unit procurement cost, AIM-120D
Procurement snapshot
Availability & export
US ITAR-controlled
Export needs U.S. State Dept (DDTC) approval; end-use & re-transfer restrictions apply.
Channel: Foreign Military Sales (FMS) or Direct Commercial Sale
Fielded & proven
Widely fielded · 40 operators
In service since 2015. Status: active · ~28,000 built.
Lifecycle cost (est.)
Unit cost known; one-shot / small-arms class has no meaningful O&S tail to model.
Interoperability
No standardised NATO calibre / datalink detected in public specs.
Derived guidance from public data — export regime by country of origin, lifecycle from the GAO ~30% acquisition rule. Verify eligibility, pricing and offsets with the manufacturer and your acquisition authority.
Full specifications
Performance
Speed, range, altitude and engagement capability.
- Max speed (Mach)
Maximum speed as a multiple of the speed of sound. Mach 2+ is typical for air-superiority fighters.
- 4 Mach Stronger than 71% of missiles
- Range
Maximum distance: ferry range for aircraft, operational range for vehicles, maximum engagement distance for missiles. Higher means more standoff or persistence.
- 160 km Stronger than 45% of missiles
Firepower
Armament, payload and guidance.
- Warhead
Warhead mass. Heavier generally means larger effect radius, at the cost of range.
- 18 kg Stronger than 29% of missiles
- Warhead type
Blast-fragmentation, shaped charge (HEAT), penetrator, thermobaric or nuclear-capable.
- Blast-fragmentation, proximity/impact fuze
- Guidance
How the weapon finds its target: inertial, GPS/GLONASS, active/semi-active radar, infrared, laser, TV, wire.
- Active radar homing, Two-way datalink, GPS/INS midcourse update
Physical
Dimensions, weight and crew.
- Length
Overall length including gun/probe where applicable.
- 3.66 m
- Combat weight
Fully loaded weight. Lighter eases transport and bridging limits; heavier often means more armor.
- 152 kg
Propulsion
Engine, power and fuel.
- Propulsion type
Turbofan, turboshaft, diesel, gas turbine, solid-fuel rocket, ramjet…
- Solid-fuel rocket
Program
Cost, production scale and operators.
- Unit cost
Approximate flyaway/unit cost where public. Defense pricing varies hugely by contract, offsets and configuration. Lower is cheaper.
- $1,500,000 Stronger than 43% of missiles
- Units built
Total production run. Higher means proven manufacturing, mature logistics and spares availability.
- 28,000 Stronger than 79% of missiles
- Operator countries
Number of countries operating the system. More operators means broader support ecosystem.
- 40 Top 3% of missiles
Specifications compiled from public Raytheon (RTX) and reference sources ↗. Published defense figures are approximations — treat comparisons as directional. Last verified 2026-07-01.
Compare with rivals
See how it stacks up
Frequently asked questions
What is the range of the Raytheon (RTX) AIM-120D AMRAAM? +
The Raytheon (RTX) AIM-120D AMRAAM has a maximum range of 160 km.
How much does the Raytheon (RTX) AIM-120D AMRAAM weigh? +
The Raytheon (RTX) AIM-120D AMRAAM has a combat weight of 152 kg.
What is the Raytheon (RTX) AIM-120D AMRAAM used for? +
The Raytheon (RTX) AIM-120D AMRAAM is a missile typically used for air superiority.
How many countries operate the Raytheon (RTX) AIM-120D AMRAAM? +
The Raytheon (RTX) AIM-120D AMRAAM is operated by 40 countries.
How much does the Raytheon (RTX) AIM-120D AMRAAM cost? +
The Raytheon (RTX) AIM-120D AMRAAM has an approximate unit cost of 1,500,000 USD. Defense pricing varies by contract, offsets and configuration — treat this as directional.
