Warship

South Korea

HD Hyundai Heavy Industries

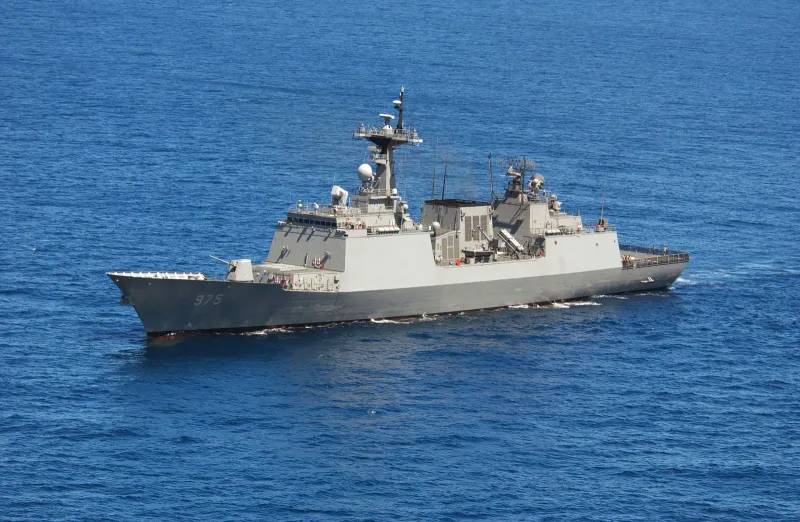

Chungmugong Yi Sun-sin-class destroyer

South Korea's second-generation guided-missile destroyer class, named for the famed 16th-century admiral and built to add area air-defense and land-attack capability beyond the earlier KDX-I frigates. Six ships were constructed between 2002 and 2006, combining a 32-cell Mk 41 VLS for SM-2 missiles with a separate K-VLS for anti-submarine rockets and Hyunmoo-III cruise missiles.

In service since 2003

Compiled from public sources ·primary reference ↗ ·last verified 2026-07-02

5,500

VLS

300

crew

Procurement snapshot

Availability & export

ROK export-licensed

DAPA-administered; aggressive export posture with financing/offset packages.

Channel: Government-to-government

Fielded & proven

Operator data not public

In service since 2003. Status: active · ~6 built.

Lifecycle cost (est.)

No public unit price to model from. Why so few systems publish one →

Interoperability

Mk 41 VLS-class

Derived guidance from public data, export regime by country of origin, lifecycle from the GAO ~30% acquisition rule. Verify eligibility, pricing and offsets with the manufacturer and your acquisition authority.

Compatible munitions & weapons

Publicly reported weapons the Chungmugong Yi Sun-sin-class destroyer can carry. Linked items have a full spec page.

SM-2 Block IIIA

K-ASROC Red Shark

Hyunmoo-III cruise missile

SSM-700K Haeseong anti-ship missile

Full specifications

Firepower

Armament, payload and guidance.

Firepower specifications
Main armament Primary weapon: main gun, cannon or missile type.	5-inch (127 mm)/L62 Mk 45 Mod 4 naval gun
VLS cells Vertical-launch missile cells on a warship, a proxy for magazine depth. Higher means more missiles before rearming.	56 Stronger than 84% of warships
Torpedo tubes Number of torpedo tubes (submarines and some surface ships).	6 Stronger than 70% of warships

Physical

Dimensions, weight and crew.

Physical specifications
Length Overall length including gun/probe where applicable.	150 m

Naval

Displacement, speed, endurance and diving depth.

Naval specifications
Displacement Standard displacement in tonnes, the ship’s size class. Larger hulls carry more but cost more and are less agile.	5,500 t
Full-load displacement Displacement fully loaded with fuel, stores and munitions.	6,520 t
Max speed Top speed in knots (surfaced, for submarines). Higher aids positioning and screening.	30 kn Stronger than 75% of warships
Complement Crew size. Fewer eases manning cost; more may indicate a larger, more capable platform.	300
Aircraft carried Embarked aircraft/helicopters. Higher extends the ship’s sensor and strike reach.	2 Stronger than 53% of warships
Propulsion plant Machinery type, nuclear reactor, gas turbine (COGAG), CODAG, diesel-electric, AIP.	Combined diesel or gas (CODOG): Hanwha-GE LM2500 gas turbines, Doosan MTU 956 diesels

Sensors & avionics

Radar, sensor suite and datalinks.

Sensors & avionics specifications
Radar Primary radar. AESA (active electronically scanned array) is the current state of the art.	AN/SPS-49(V)5 2D long-range radar, MW08 3D target indication radar, 2x STIR240 fire-control radar

Program

Cost, production scale and operators.

Program specifications
Units built Total production run. Higher means proven manufacturing, mature logistics and spares availability.	6 Stronger than 78% of warships

Specifications compiled from public HD Hyundai Heavy Industries and reference sources ↗. Published defense figures are approximations, treat comparisons as directional. Last verified 2026-07-02.
