South Korea Hanwha Aerospace

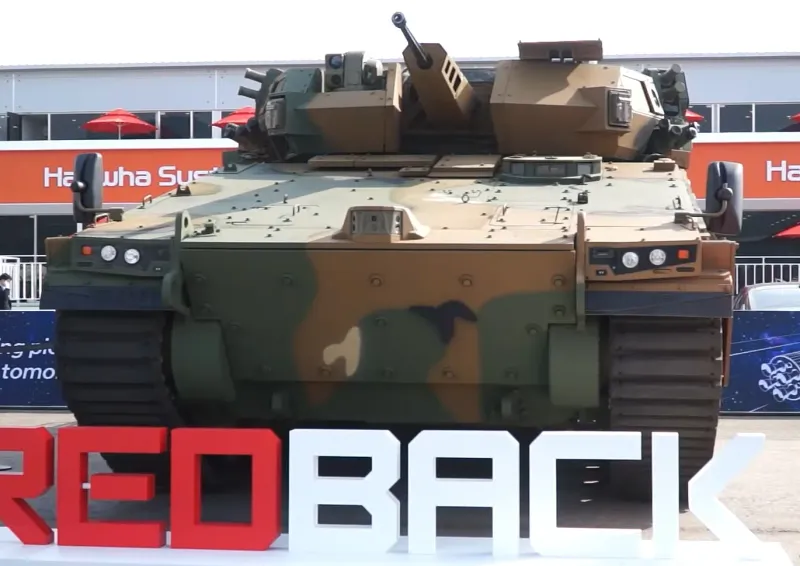

AS21 Redback
Hanwha's flagship export infantry fighting vehicle, developed from the Korean K21 and selected by Australia under Project LAND 400 Phase 3 (129 vehicles contracted in December 2023, first deliveries from 2027, manufactured at the Hanwha Armoured Vehicle Centre of Excellence in Geelong). The Redback pairs a two-man turret mounting the 30mm Mk44S Bushmaster II cannon with a 7.62mm coaxial machine gun and an Electro Optic Systems remote weapon station, riding on an MTU diesel powerpack with a hydropneumatic in-arm suspension. It carries a crew of three plus eight dismounts and emphasises survivability with a hybrid modular armour package and provision for an active protection system.
In service since 2018 · 1 operator countries
Compiled from public sources ·primary reference ↗ ·last verified 2026-07-16
70
km/h
520
km range
30
mm gun
42,000
kg
Pricing: Australia contracted 129 vehicles (Dec 2023); first deliveries from 2027
Procurement snapshot
Availability & export
ROK export-licensed
DAPA-administered; aggressive export posture with financing/offset packages.
Channel: Government-to-government
Fielded & proven
Limited · 1 operator
In service since 2018. Status: active.
Lifecycle cost (est.)
No public unit price to model from. Why so few systems publish one →
Interoperability
No standardised NATO calibre / datalink detected in public specs.
Derived guidance from public data, export regime by country of origin, lifecycle from the GAO ~30% acquisition rule. Verify eligibility, pricing and offsets with the manufacturer and your acquisition authority.
Full specifications
Performance
Speed, range, altitude and engagement capability.
| Max speed Maximum level speed. For aircraft this is at optimal altitude; for ground vehicles, top road speed. Higher means faster response and better kinematic performance. | 70 km/h |
|---|---|
| Range Maximum distance: ferry range for aircraft, operational range for vehicles, maximum engagement distance for missiles. Higher means more standoff or persistence. | 520 km |
Firepower
Armament, payload and guidance.
| Main armament Primary weapon: main gun, cannon or missile type. | 30 mm Mk44S Bushmaster II cannon |
|---|---|
| Secondary armament Additional weapons: coaxial MG, remote weapon station, gun pods. | 7.62 mm coaxial machine gun; EOS remote weapon station |
| Caliber Bore diameter of the main gun or rifle. Larger throws heavier projectiles; not simply better, ammunition commonality matters. | 30 mm |
Protection
Armor, countermeasures and survivability.
| Armor Armor technology: composite, modular, ERA-fitted, uranium-ceramic. Exact compositions are classified. | Hybrid modular composite/reactive armour package |
|---|---|
| NBC protection Sealed crew compartment with overpressure filtration for nuclear/biological/chemical environments. | Yes |
Physical
Dimensions, weight and crew.
| Length Overall length including gun/probe where applicable. | 8.8 m |
|---|---|
| Width Overall width, matters for rail/road transport of vehicles. | 3.6 m |
| Height Overall height. Lower profile is harder to spot and hit for ground vehicles. | 3.8 m |
| Combat weight Fully loaded weight. Lighter eases transport and bridging limits; heavier often means more armor. | 42,000 kg |
| Crew Personnel required to operate. Fewer reduces exposure; autoloaders trade a loader for mechanical complexity. | 3 |
Propulsion
Engine, power and fuel.
| Engine Powerplant model and type. | MTU 8V199 TE21 (MT881 Ka-500) diesel with Allison transmission |
|---|---|
| Propulsion type Turbofan, turboshaft, diesel, gas turbine, solid-fuel rocket, ramjet… | Diesel |
Munition
Round type, penetration, velocity and projectile data.
| Caliber Bore diameter the round is fired from. | 30 mm |
|---|
Program
Cost, production scale and operators.
| Operator countries Number of countries operating the system. More operators means broader support ecosystem. | 1 |
|---|
Specifications compiled from public Hanwha Aerospace and reference sources ↗. Published defense figures are approximations, treat comparisons as directional. Last verified 2026-07-16.
Compare with rivals
See how it stacks up
Rheinmetall Puma
BAE Systems Inc. (US Land Systems) M2A3 Bradley
General Dynamics Land Systems Ajax Frequently asked questions
What is the top speed of the Hanwha Aerospace AS21 Redback? +
The Hanwha Aerospace AS21 Redback has a maximum speed of 70 km/h.
What is the range of the Hanwha Aerospace AS21 Redback? +
The Hanwha Aerospace AS21 Redback has a maximum range of 520 km.
How much does the Hanwha Aerospace AS21 Redback weigh? +
The Hanwha Aerospace AS21 Redback has a combat weight of 42,000 kg.
How many crew does the Hanwha Aerospace AS21 Redback require? +
The Hanwha Aerospace AS21 Redback requires a crew of 3.
What is the main armament of the Hanwha Aerospace AS21 Redback? +
The Hanwha Aerospace AS21 Redback's primary weapon is the 30 mm Mk44S Bushmaster II cannon.
What engine does the Hanwha Aerospace AS21 Redback use? +
The Hanwha Aerospace AS21 Redback is powered by the MTU 8V199 TE21 (MT881 Ka-500) diesel with Allison transmission.
What is the Hanwha Aerospace AS21 Redback used for? +
The Hanwha Aerospace AS21 Redback is a ifv / apc typically used for infantry combat, anti armor.
How many countries operate the Hanwha Aerospace AS21 Redback? +
The Hanwha Aerospace AS21 Redback is operated by 1 countries.
How much does the Hanwha Aerospace AS21 Redback cost? +
Hanwha Aerospace AS21 Redback: Australia contracted 129 vehicles (Dec 2023); first deliveries from 2027. Defense program costs are rarely fully public and vary by contract and configuration.
Similar systems
Hanwha Aerospace

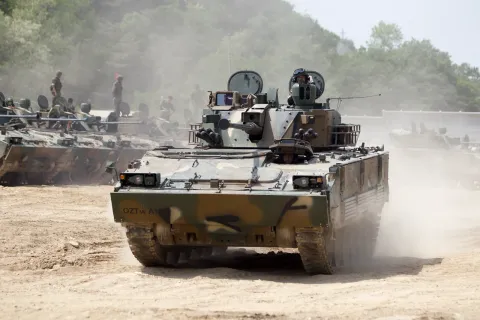

K21
