Warship

Taiwan

National Chung-Shan Institute of Science and Technology

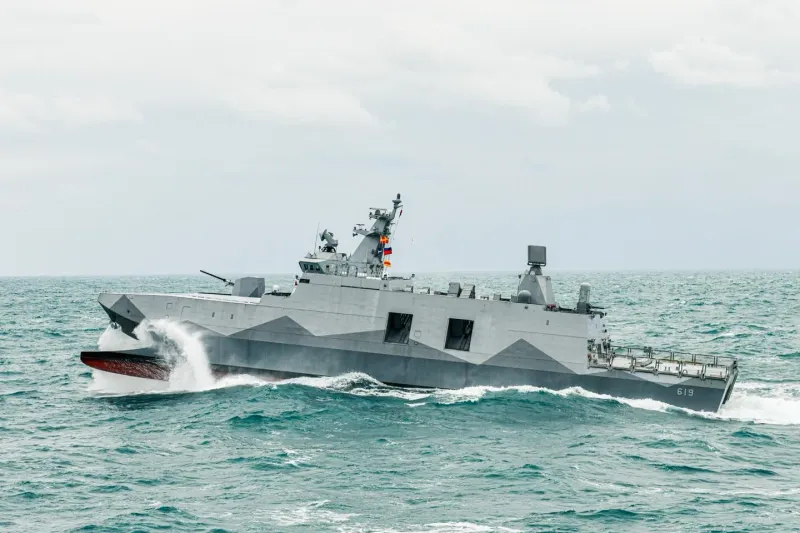

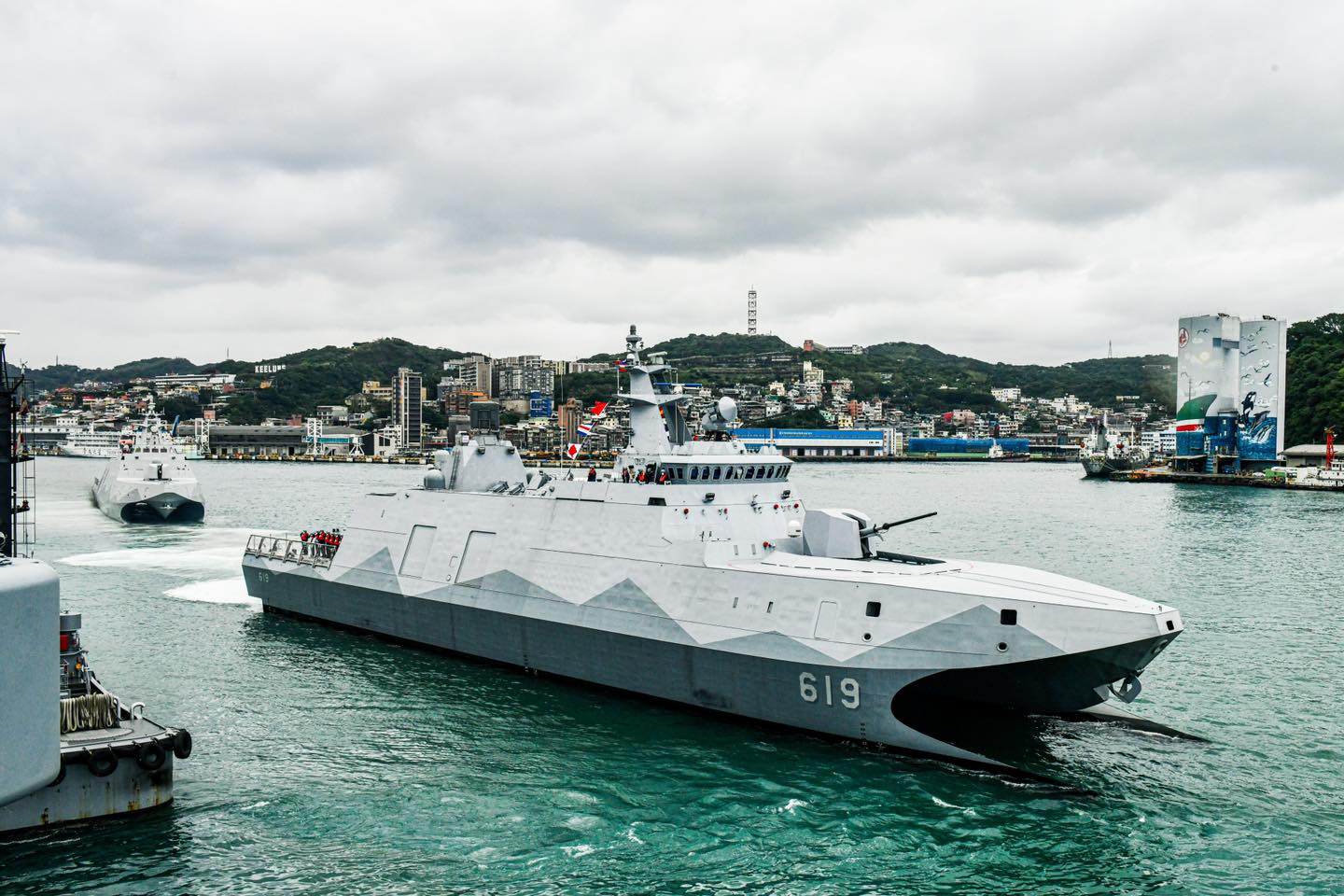

Tuo Chiang-class

A stealthy catamaran-hulled fast attack corvette built for the Republic of China Navy, designed to swarm and saturate larger Chinese surface combatants with anti-ship missile salvos in the Taiwan Strait. Its wave-piercing hull enables high speed in coastal waters.

In service since 2014 · 1 operator countries

Compiled from public sources ·primary reference ↗ ·last verified 2026-07-02

685

2,000

nmi

crew

Procurement snapshot

Availability & export

National export licensing

Subject to Taiwan export-control approval; verify eligibility with the manufacturer.

Channel: Direct commercial / G2G

Fielded & proven

Limited · 1 operator

In service since 2014. Status: active · ~3 built.

Lifecycle cost (est.)

No public unit price to model from. Why so few systems publish one →

Interoperability

No standardised NATO calibre / datalink detected in public specs.

Derived guidance from public data, export regime by country of origin, lifecycle from the GAO ~30% acquisition rule. Verify eligibility, pricing and offsets with the manufacturer and your acquisition authority.

Compatible munitions & weapons

Publicly reported weapons the Tuo Chiang-class can carry. Linked items have a full spec page.

Hsiung Feng II

Hsiung Feng III

Full specifications

Firepower

Armament, payload and guidance.

Firepower specifications
Main armament Primary weapon: main gun, cannon or missile type.	76 mm Oto Melara naval gun

Physical

Dimensions, weight and crew.

Physical specifications
Length Overall length including gun/probe where applicable.	60.4 m

Naval

Displacement, speed, endurance and diving depth.

Naval specifications
Displacement Standard displacement in tonnes, the ship’s size class. Larger hulls carry more but cost more and are less agile.	685 t
Max speed Top speed in knots (surfaced, for submarines). Higher aids positioning and screening.	30 kn Stronger than 75% of warships
Range Cruising range in nautical miles. Nuclear vessels are effectively unlimited (fuel-wise). Higher means more reach without replenishment.	2,000 nmi Bottom 3% of warships
Complement Crew size. Fewer eases manning cost; more may indicate a larger, more capable platform.	41
Propulsion plant Machinery type, nuclear reactor, gas turbine (COGAG), CODAG, diesel-electric, AIP.	CODAG (2× diesel + 2× gas turbine, waterjets)

Sensors & avionics

Radar, sensor suite and datalinks.

Sensors & avionics specifications
Radar Primary radar. AESA (active electronically scanned array) is the current state of the art.	MSTAR active phased-array radar

Program

Cost, production scale and operators.

Program specifications
Units built Total production run. Higher means proven manufacturing, mature logistics and spares availability.	3 Stronger than 44% of warships
Operator countries Number of countries operating the system. More operators means broader support ecosystem.	1 Stronger than 45% of warships

Specifications compiled from public National Chung-Shan Institute of Science and Technology and reference sources ↗. Published defense figures are approximations, treat comparisons as directional. Last verified 2026-07-02.
