Germany Rheinmetall

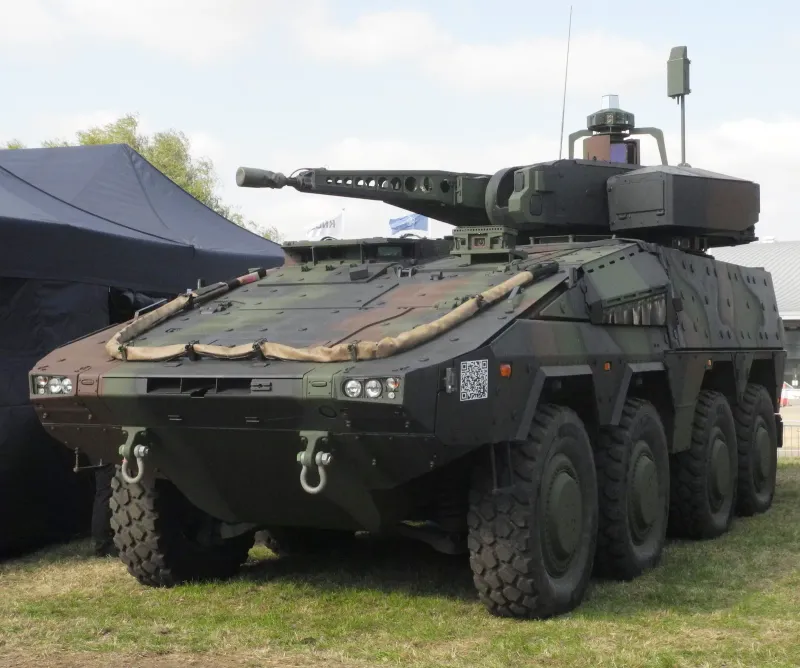

Boxer
A German-Dutch 8x8 modular armored vehicle developed by ARTEC (Rheinmetall and KNDS Deutschland), built around a swappable mission-module concept covering troop transport, command, ambulance and reconnaissance roles. Widely exported across NATO including to the UK, Australia and Lithuania.
In service since 2011 · 7 operator countries
Compiled from public sources ·primary reference ↗ ·last verified 2026-07-02
103
km/h
1,050
km range
38,500
kg
💲 ≈ $6,000,000 — Approximate per-vehicle cost, mission-module dependent
Procurement snapshot
Availability & export
German export-licensed
BAFA licensing with strict end-use review; approvals can be politically constrained.
Channel: Direct commercial / G2G
Fielded & proven
Established · 7 operators
In service since 2011. Status: active · ~1,500 built.
Lifecycle cost (est.)
$15M – $21M
Acquisition is only ~30% of lifecycle cost — operating & support dominate over ~30 yrs. Rough 2.5–3.5× the unit price.
Interoperability
No standardised NATO calibre / datalink detected in public specs.
Derived guidance from public data — export regime by country of origin, lifecycle from the GAO ~30% acquisition rule. Verify eligibility, pricing and offsets with the manufacturer and your acquisition authority.
Full specifications
Performance
Speed, range, altitude and engagement capability.
- Max speed
Maximum level speed. For aircraft this is at optimal altitude; for ground vehicles, top road speed. Higher means faster response and better kinematic performance.
- 103 km/h Stronger than 83% of IFVs
- Range
Maximum distance: ferry range for aircraft, operational range for vehicles, maximum engagement distance for missiles. Higher means more standoff or persistence.
- 1,050 km Top 1% of IFVs
Firepower
Armament, payload and guidance.
- Main armament
Primary weapon: main gun, cannon or missile type.
- 30 mm cannon (Boxer RCH/CRV variant, optional)
- Secondary armament
Additional weapons: coaxial MG, remote weapon station, gun pods.
- 7.62 mm remote weapon station
- Ammunition
Rounds carried (main gun) or standard magazine capacity.
- 0 Bottom 4% of IFVs
Protection
Armor, countermeasures and survivability.
- Armor
Armor technology: composite, modular, ERA-fitted, uranium-ceramic. Exact compositions are classified.
- Modular steel with add-on composite armor
- NBC protection
Sealed crew compartment with overpressure filtration for nuclear/biological/chemical environments.
- Yes
Physical
Dimensions, weight and crew.
- Length
Overall length including gun/probe where applicable.
- 7.9 m
- Width
Overall width — matters for rail/road transport of vehicles.
- 2.99 m
- Height
Overall height. Lower profile is harder to spot and hit for ground vehicles.
- 2.37 m
- Combat weight
Fully loaded weight. Lighter eases transport and bridging limits; heavier often means more armor.
- 38,500 kg
- Crew
Personnel required to operate. Fewer reduces exposure; autoloaders trade a loader for mechanical complexity.
- 3
- Troop capacity
Number of embarked troops/passengers (IFV, APC, transport). Higher carries more.
- 8 Stronger than 62% of IFVs
Propulsion
Engine, power and fuel.
- Engine
Powerplant model and type.
- MTU 8V199 TE20 diesel
- Engine power
Engine output power. Higher moves more weight faster.
- 720 hp Stronger than 81% of IFVs
- Propulsion type
Turbofan, turboshaft, diesel, gas turbine, solid-fuel rocket, ramjet…
- Diesel
Sensors & avionics
Radar, sensor suite and datalinks.
- Thermal imaging
Thermal sights for night and obscured-visibility operations.
- Yes
Program
Cost, production scale and operators.
- Unit cost
Approximate flyaway/unit cost where public. Defense pricing varies hugely by contract, offsets and configuration. Lower is cheaper.
- $6,000,000
- Units built
Total production run. Higher means proven manufacturing, mature logistics and spares availability.
- 1,500 Stronger than 59% of IFVs
- Operator countries
Number of countries operating the system. More operators means broader support ecosystem.
- 7 Stronger than 79% of IFVs
Specifications compiled from public Rheinmetall and reference sources ↗. Published defense figures are approximations — treat comparisons as directional. Last verified 2026-07-02.
Compare with rivals
See how it stacks up
BAE Systems Inc. (US Land Systems) M2A3 Bradley
General Dynamics Land Systems Ajax Frequently asked questions
What is the top speed of the Rheinmetall Boxer? +
The Rheinmetall Boxer has a maximum speed of 103 km/h.
What is the range of the Rheinmetall Boxer? +
The Rheinmetall Boxer has a maximum range of 1,050 km.
How much does the Rheinmetall Boxer weigh? +
The Rheinmetall Boxer has a combat weight of 38,500 kg.
How many crew does the Rheinmetall Boxer require? +
The Rheinmetall Boxer requires a crew of 3.
What is the main armament of the Rheinmetall Boxer? +
The Rheinmetall Boxer's primary weapon is the 30 mm cannon (Boxer RCH/CRV variant, optional).
What engine does the Rheinmetall Boxer use? +
The Rheinmetall Boxer is powered by the MTU 8V199 TE20 diesel.
What is the Rheinmetall Boxer used for? +
The Rheinmetall Boxer is a ifv / apc typically used for infantry combat.
How many countries operate the Rheinmetall Boxer? +
The Rheinmetall Boxer is operated by 7 countries.
How much does the Rheinmetall Boxer cost? +
The Rheinmetall Boxer has an approximate unit cost of 6,000,000 USD. Defense pricing varies by contract, offsets and configuration — treat this as directional.
