IFV / APC

Switzerland

MOWAG

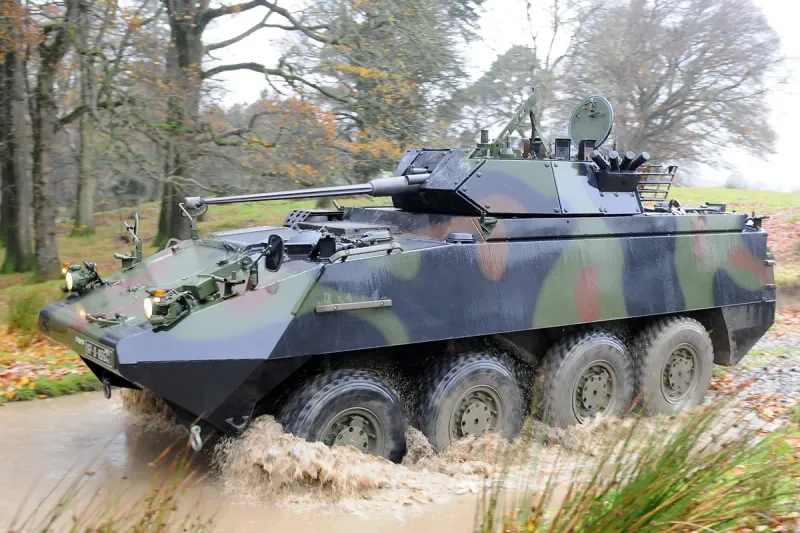

Piranha III

A Swiss family of wheeled armored vehicles produced in 4x4 through 10x10 configurations, one of the most widely license-built armored vehicle designs in the world, forming the basis of the US LAV, Australian ASLAV and Canadian LAV families. Continuously updated through successive generations, with the Piranha III and V still in production for export customers.

In service since 1972 · 20 operator countries

Compiled from public sources ·primary reference ↗ ·last verified 2026-07-02

100

km/h

660

km range

mm gun

17,000

Pricing: Unit cost not publicly disclosed

Procurement snapshot

Availability & export

National export licensing

Subject to Switzerland export-control approval; verify eligibility with the manufacturer.

Channel: Direct commercial / G2G

Fielded & proven

Widely fielded · 20 operators

In service since 1972. Status: active · ~10,000 built.

Lifecycle cost (est.)

No public unit price to model from. Why so few systems publish one →

Interoperability

No standardised NATO calibre / datalink detected in public specs.

Derived guidance from public data, export regime by country of origin, lifecycle from the GAO ~30% acquisition rule. Verify eligibility, pricing and offsets with the manufacturer and your acquisition authority.

Full specifications

Performance

Speed, range, altitude and engagement capability.

Performance specifications
Max speed Maximum level speed. For aircraft this is at optimal altitude; for ground vehicles, top road speed. Higher means faster response and better kinematic performance.	100 km/h Stronger than 64% of IFVs
Range Maximum distance: ferry range for aircraft, operational range for vehicles, maximum engagement distance for missiles. Higher means more standoff or persistence.	660 km Stronger than 61% of IFVs

Firepower

Armament, payload and guidance.

Firepower specifications
Main armament Primary weapon: main gun, cannon or missile type.	25 mm or 30 mm autocannon (turret-dependent)
Secondary armament Additional weapons: coaxial MG, remote weapon station, gun pods.	7.62 mm coaxial machine gun
Caliber Bore diameter of the main gun or rifle. Larger throws heavier projectiles; not simply better, ammunition commonality matters.	25 mm

Protection

Armor, countermeasures and survivability.

Protection specifications
Armor Armor technology: composite, modular, ERA-fitted, uranium-ceramic. Exact compositions are classified.	Welded steel with modular add-on armor
NBC protection Sealed crew compartment with overpressure filtration for nuclear/biological/chemical environments.	Yes

Physical

Dimensions, weight and crew.

Physical specifications
Length Overall length including gun/probe where applicable.	6.9 m
Width Overall width, matters for rail/road transport of vehicles.	2.66 m
Height Overall height. Lower profile is harder to spot and hit for ground vehicles.	1.99 m
Combat weight Fully loaded weight. Lighter eases transport and bridging limits; heavier often means more armor.	17,000 kg
Crew Personnel required to operate. Fewer reduces exposure; autoloaders trade a loader for mechanical complexity.	3
Troop capacity Number of embarked troops/passengers (IFV, APC, transport). Higher carries more.	7 Stronger than 30% of IFVs

Propulsion

Engine, power and fuel.

Propulsion specifications
Engine Powerplant model and type.	Caterpillar C9 diesel
Engine power Engine output power. Higher moves more weight faster.	400 hp Stronger than 42% of IFVs
Propulsion type Turbofan, turboshaft, diesel, gas turbine, solid-fuel rocket, ramjet…	Diesel

Program

Cost, production scale and operators.

Program specifications
Units built Total production run. Higher means proven manufacturing, mature logistics and spares availability.	10,000 Top 6% of IFVs
Operator countries Number of countries operating the system. More operators means broader support ecosystem.	20 Top 6% of IFVs

Specifications compiled from public MOWAG and reference sources ↗. Published defense figures are approximations, treat comparisons as directional. Last verified 2026-07-02.
